Avon Barrier Lift System
Avon Barrier Lift System (BLS)
Avon Barrier Lift System (BLS) provides reliable high security at vehicle access points. It is impact rated to globally recognised standards. Its reliable and fast operation offers an immediate protection against vehicles attempting to gain unauthorised access.

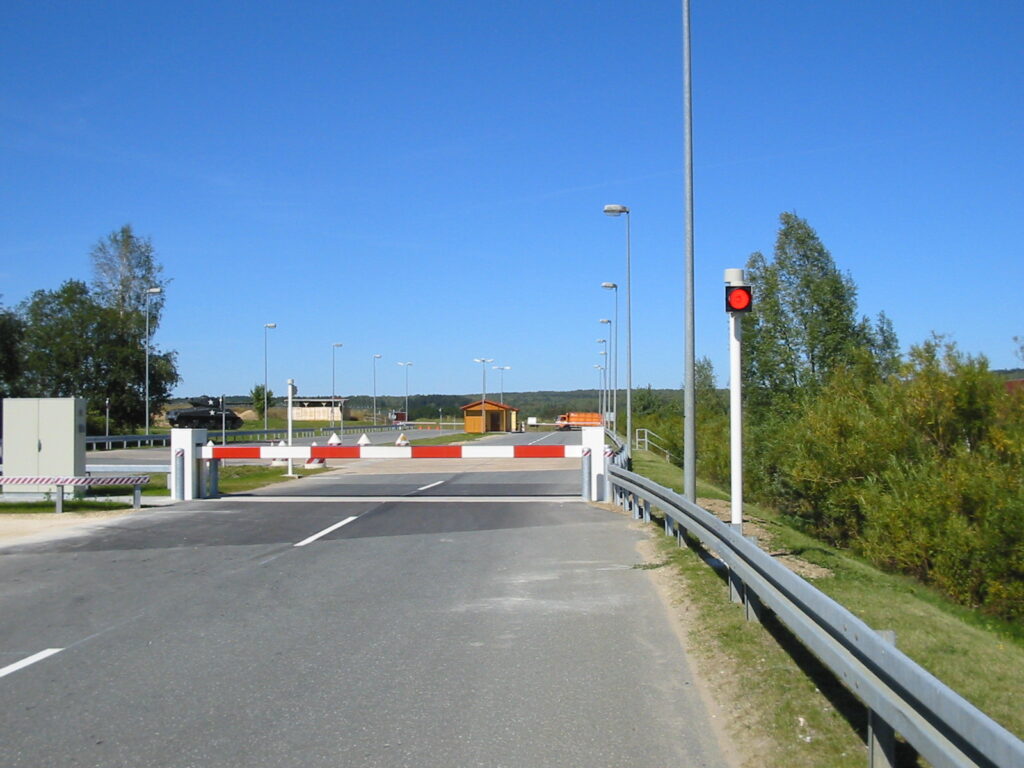

The Barrier Lift System is a unique impact rated blocking system, where the crash beam is stored below the road’s surface and raises from the ground to block the passageway of vehicles, making it ideal for sites with restricted overhead space, an alternative to the Avon EB950CR Armstrong Barrier or a hinged swing gate similar to the Avon GC1100CR Hinged Gate. It creates a visual and physical deterrent to hostile vehicles attempting to gain access by force.

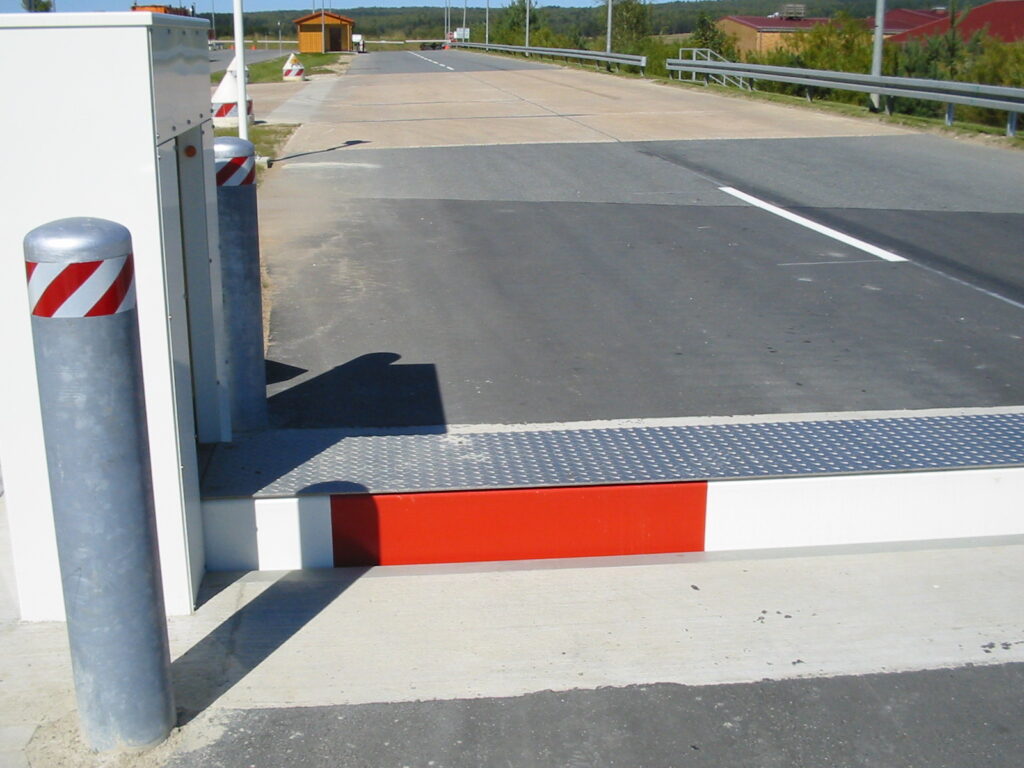

It is suited for all climate zones. A combination of high-quality material and the proven TRI-PROTECT® long-term corrosion protection ensures it can withstand all kinds of weather. In the lowered position the BLS is level with the road and so completely unobtrusive. It corresponds to bridge class SLW 60, to ensure that also the heaviest vehicles can use the entry.
Key features & benefits
Features
- Physically impact rated to both US & UK standards
- Tested at 6m & 10m cwo
- Shallow in-road foundation for crash beam
- Manufactured from heavy gauge materials
- Manual hand pump facility
- Programmable controller
Benefits
- Confidence in proven performance globally
- Range of widths and specifications available
- Overcomes overhead obstruction
- Strong and durable
- Operational under power failure conditions
- Flexibility to interface with all forms of access control
Product Overview
The BLS has undergone a variety of independant physical crash tests, both in the USA and the UK. Testing includes the Department of States SD-STD-02.01, Rev. A 03/2003 achieveing K12/L3 – 6 m cwo & K12/L2 -10m cwo and PAS 68 achieving zero penetration PAS 68:2007 V/7500[N3]/80/90:0.0/25- 6m cwo.
As standard it is available in white (RAL9010) and the drive unit is light grey (RAL7035) with optional striped flame red (RAL 3000)/ pure white (RAL 9010) or solid flame red (RAL 3000).
Options available
- Emergency Operation (EO)
- Anti Terror Button
- Remote Operation (RO) – Accumulator with rechargeable batteries 1 operation
- Combination of EO & RO
- External cabinet with rain cover
- Alternative RAL colour paint
- Light beam system
- Remote control receiver & antenna
- Push button or keyswitch
Barrier Lift System K12 – 10 m
| Security Rating: | DOD SD-STD-02.01 Rev. A 03/2003 K12/L2 tested with 10 m CWO |
|---|---|
| Blocking height: | 1100 mm |
| Blocking width: | 6000 mm – 10000 mm in 1000 mm increments |
| Operating speed: | Raising: approx. 0.17 m/s, lowering: approx. 0.20 m/s |
| Drive Unit: | Installed in separate drive cabinet |
| Installation Depth: | 510 – 1210 mm incl. 310 mm road covering |
| Options: | R01 |
Barrier Lift System K4
| Security Rating: | DOS SD-STD-02.01 Rev. A 03/2003 K4/L3 tested with 9 m CWO |
|---|---|
| Blocking height: | 1100 mm |
| Blocking width: | 3000 mm – 9000 mm in 500 mm increments |
| Operating speed: | Raising: approx. 0.17 m/s, lowering: approx. 0.20 m/s |
| Drive Unit: | Installed in separate drive cabinet |
| Installation Depth: | 1110 – 1910 mm incl. 310 mm road covering |
| Options: | R01 |
