Avon EntraQuick Bi-Folding Gate

Avon EntraQuick I & II Bi-Folding Gate

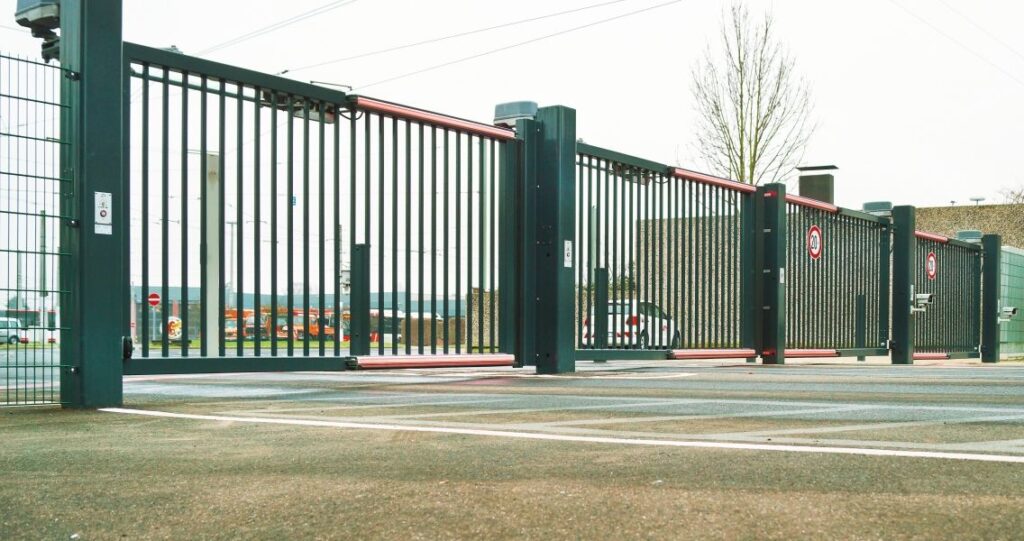

The Avon EntraQuick I & II Bi-Folding Gate is a type-tested, trackless bi-fold speed gate, ideally suited to keep your perimeter secured. Its fast operation allows opening and closing after every entry or exit. It boasts speed, stability, reliability and low maintenance.

Its trackless design means no disruption to the central road surface during installation. Drive post and folding leaf units come pre-assembled adding to the ease of installation and with no gate run back required its ideal if space is restricted.

Trackless Speedgate
EntraQuick Speed Gate

Key features & benefits

Features

  • Hot dip galvanised, powder coated  (5 standard RAL colours)
  • Pre-assembled drive post and folding leaf units
  • Trackless
  • Fast Acting
  • Tested & Certified



Benefits

  • High quality durable finish
  • Simple to install
  • No central roadway excavation
  • High traffic volume
  • Flexibility to interface with all forms of access control
  • Reliable and dependable

Product overview

Fast & Secure

This high speed bi-folding gate enables fast opening and closing for each vehicle passage, managing high volumes of traffic whilst still securing the roadway against unauthorised vehicles and pedestrians.

Full height perimeter protection is created in the closed position, its smart design provides a stable operation with no additional floor lock in the closed position necessary.

Safety & Certification

As standard, gates are fitted with relevant compliant safety systems including safety edges and light beams. EntraQuick Gates are certified Type-tested by the notified body TÜV Nord.

A full site risk assessment should be undertaken prior to the design and installation of the gate, to ensure that all the appropriate safety measures have been addressed.

Plug & Play

Its design includes a Single or Double leaf, quick folding gate with folding leaves, drive posts, control unit and electro-mechanical drives and OPEN/STOP/CLOSE keyswitch, or you can customise your requirement with options.

The two models are available in different heights and opening widths. The gate leaves fold open inwards (as standard, option available) toward the secure side and each leaf can be opened separately if required. For safe pedestrian access you can incorporate the TurnSec turnstiles.

Contact us now for a quotation

Avon EntraQuick Gates

To find out more about our EntraQuick Gates

  • This field is for validation purposes and should be left unchanged.

Sturdy, fast acting security deployed quickly to secure an area from vehicles and pedestrians

EntraQuick Bi-folding Speed Gate

Options Available

  • Inductive loop systems
  • Intercom systems
  • Emergency vehicle keyswitch
  • Flashing permanent/rotating beacon
  • Traffic lights
  • Keypad
  • Remote Control with hand held transmitters
  • Card Readers
  • Push Button table top control panel
  • Additional safety light beam for HGV height
  • Keyswitches for modes of operation
  • Timer
  • Alternative RAL paint colours

Technical Specification



EntraQuick I

EntraQuick II

Gate height

2050 mm, 2450 mm*

2050 mm, 2550 mm, 3050 mm**

Clear opening width

3000 – 6000 mm in 500 mm increments

4000 – 10000 mm in 500 mm increments

Infill

Bar infill RHS 30/20 mm

Bar infill RHS 30 mm

Foundation

Top edge of foundation 200 mm below finished floor level (Standard), other lowerings possible

Drive Unit

One or two knee-joint drives (depending on model)

Control Unit

Multifunctional, automatic control WE-Tronic II with integrated frequency converter

Interlocking

Via drive mechanism supported by interlocking of gate leaves through reception fork and in-feed roller

Certification

TÜV type-tested according to DIN EN 13241-1

* incl 100 mm ground clearance **

*For a CWO > 8m the maximum height is 2050 mm

**Incl. 100 mm ground clearance

Resources for the EntraQuick Gate

Technical Datasheet – Avon EntraQuick I Bi-Folding Sliding Gate Double Leaf
Format: pdf

Technical Datasheet – Avon EntraQuick I Bi-Folding Sliding Gate Double Leaf

Technical Datasheet – Avon EntraQuick II Bi-Folding Sliding Gate Double Leaf
Format: pdf

Technical Datasheet – Avon EntraQuick II Bi-Folding Sliding Gate Double Leaf

Technical Datasheet – Avon EntraQuick II Bi-Folding Sliding Gate Single Leaf
Format: pdf

Technical Datasheet – Avon EntraQuick II Bi-Folding Sliding Gate Single Leaf

Tender Description Bi-folding Gate EntraQuick I
Format: pdf

Tender Description Bi-folding Gate EntraQuick I

Tender Description Bi-folding Gate EntraQuick II Double Leaf
Format: pdf

Tender Description Bi-folding Gate EntraQuick II Double Leaf

Tender Description Bi-folding Gate EntraQuick II Single Leaf
Format: pdf

Tender Description Bi-folding Gate EntraQuick II Single Leaf
